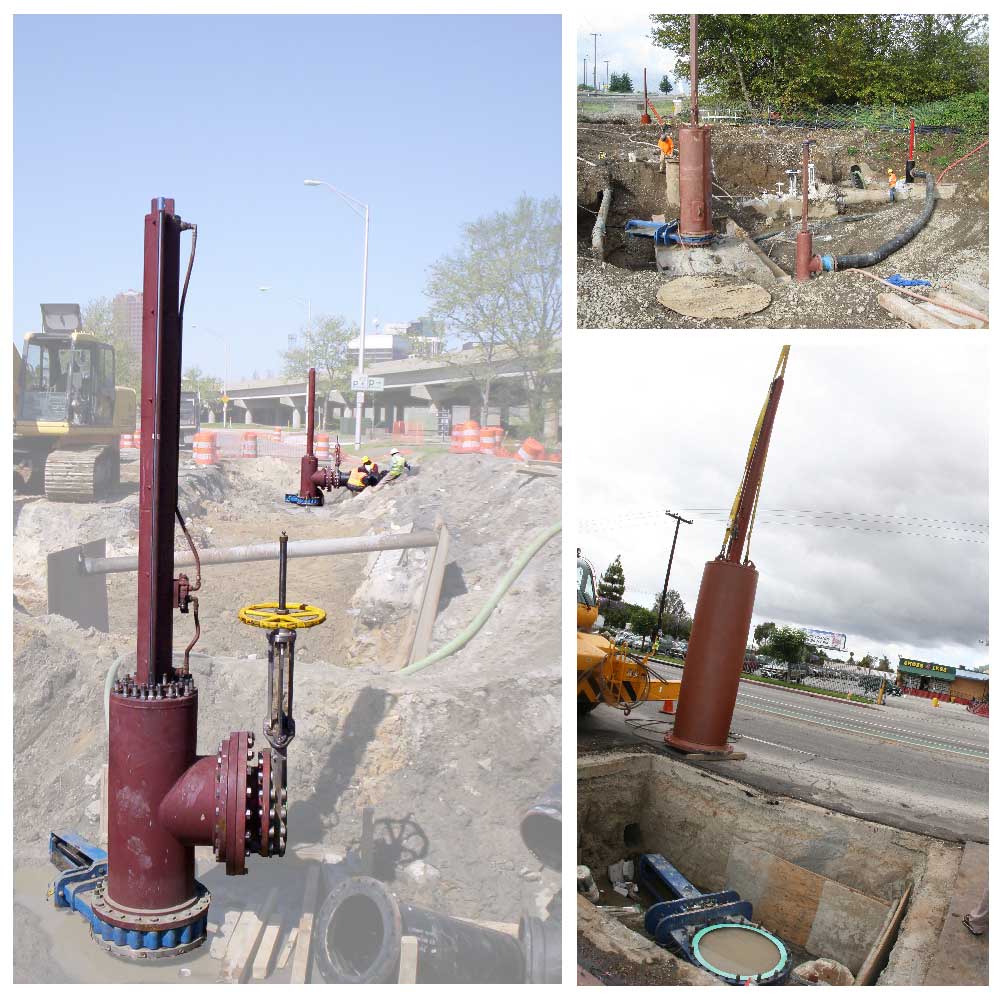

A. Hottap on the line is previously made, the linestop machine is attached to a temporary valve and the valve is opened. Linestop is hydraulically or mechanically pushed into line to plug the pipe. Click the following link for more information about our hot tapping, hottap, wettap, pressure tap services. B. There are various types of line stopping heads. The type illustrated in the picture on the left can hold pressures ranging from 1000 psi. A single linestop can be used to temporarily stop and abandon a pipeline. The other types of line stopping equipment can be found here: Linestop, stopple, pipe plugging machines. C. Two or more linestops can be used in conjunction to isolate and bypass many intersecting lines at once. Fluid in the line is bypassed, leaving a workable dead section, in which, alterations, repairs, or valve additions can be achieved, while service provided by the line is continued. Click the following link for more information about our pipeline by-passing services. D. When the required work is completed, and the linestop is to be removed, completion machines are installed onto the temporary valves. An IFT completion plug is installed into the outlet flange of the linestop fitting. This allows the linestop machines and temporary valves to be removed. A blind flange is usually installed to finished the linestop operation. More details can be found about our Completion plug assemblies.
Advanced Line Stopping Services
Pipeline line stops isolate a section of pipe, stopping its flow. IFT provides the most advanced linestop services available today! Sizes from 1/2" - 84" on any type of pipeline. Indoor line stops require various types of line stopping equipment and folding heads for tight inaccessible areas for example here is an indoor line stop featured in the featured pipeline work section of this website. IFT is the leader for indoor pipeline services. We can perform pipeline plug services on steam systems, air lines, chemical lines and chilled water systems anywhere, any time. Changes to your manufacturing plant and piping systems can be solved without an outage. Pressures to 500 psi and temperatures through 500 deg. F. Get a quote for your indoor, outdoor, underground, or above, high pressure or hazardous pipeline linestop needs. Call IFT 1-800-221-3332
Pipeline Stopping Cut Sheet PDF'sDolor Sit Amet
Pipe Linestop Services SlideshowDolor Sit Amet

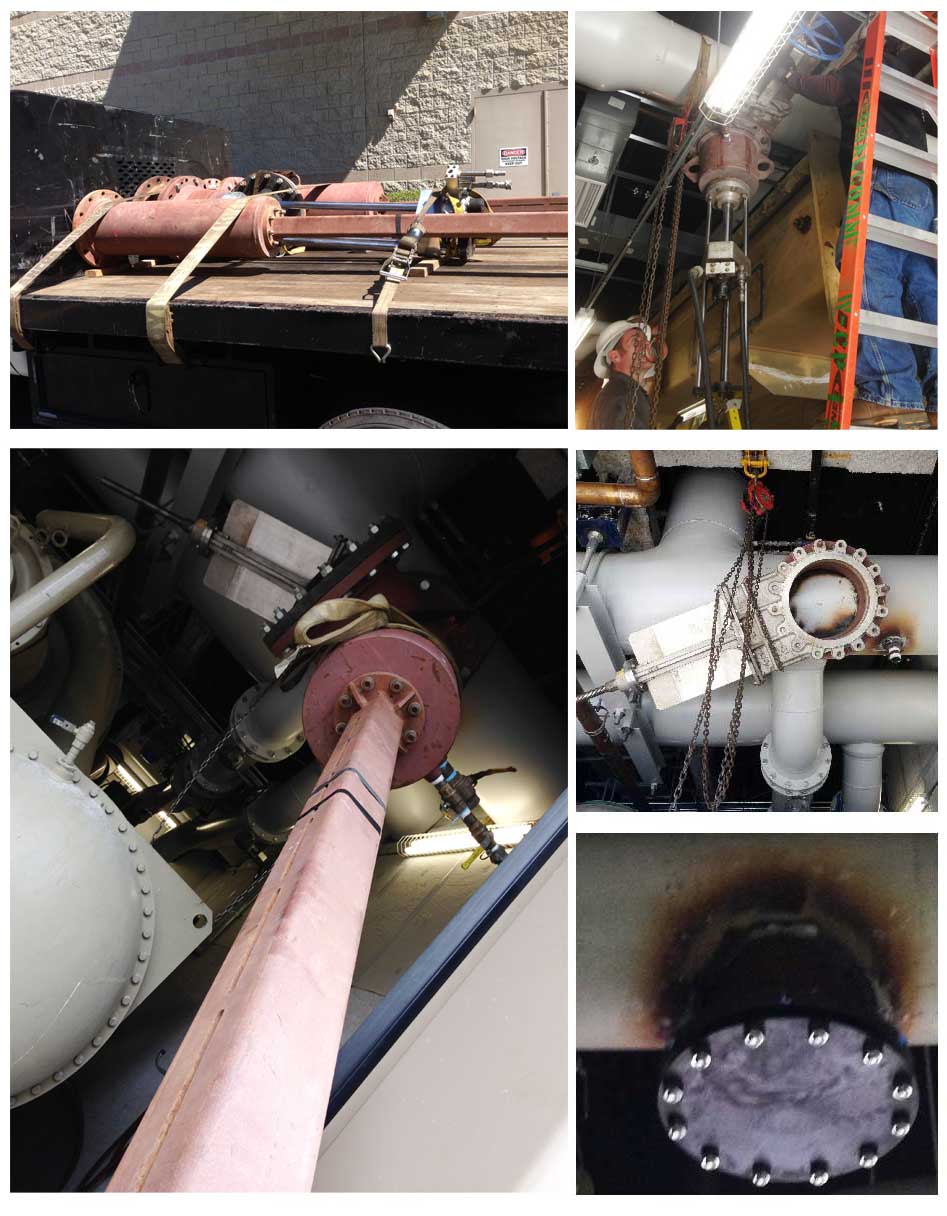

Indoor 18 Inch Linestop machine forming a 100 percent shutdown
Also, you see the 16 inch Hot tap Prep Work for the 18" Linestop and blind flange completion plug.

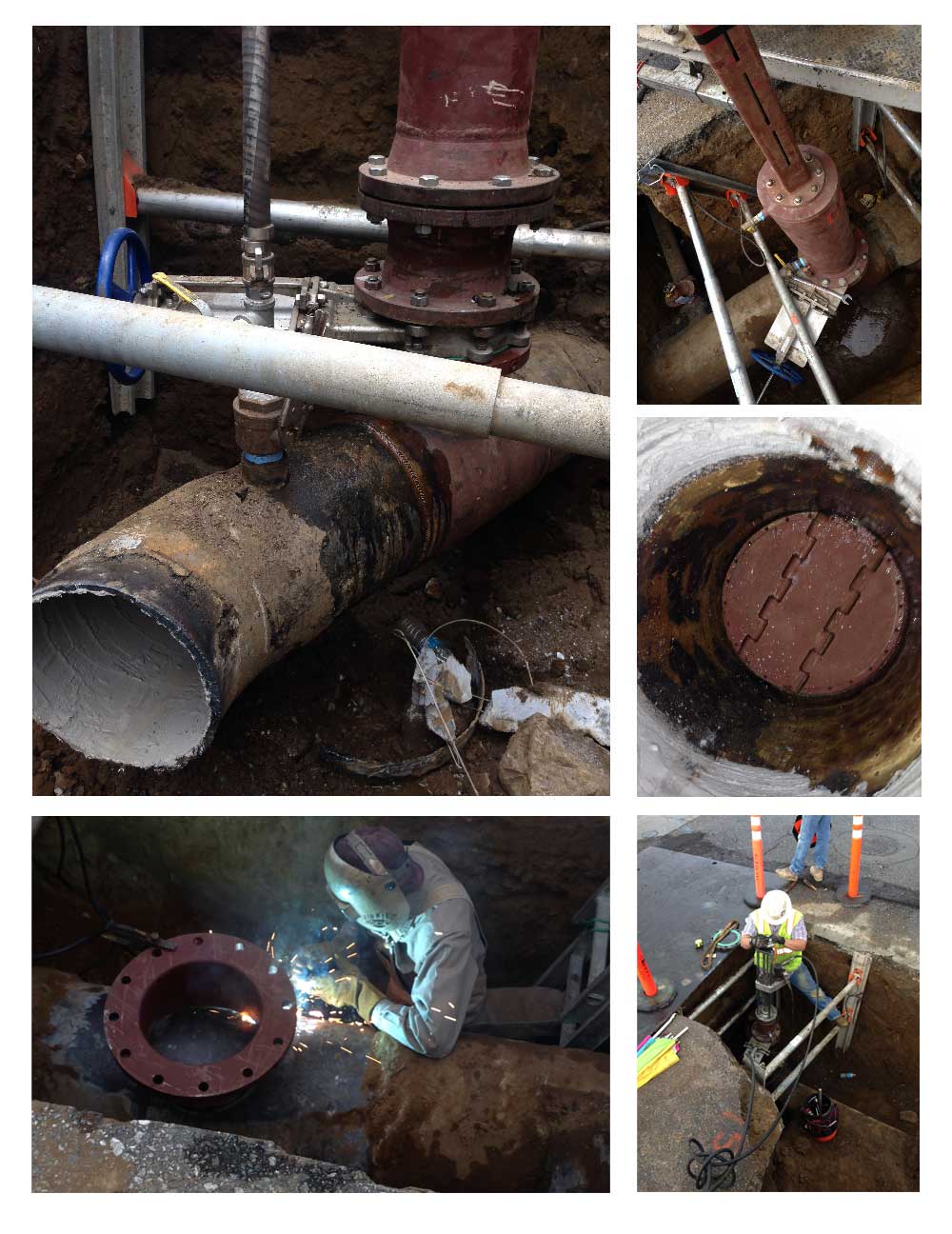

12” Linestop for domestic waterline at or under 150PSI
18” Linestop held for up to 1 day while you perform pipeline modifications
Linestop with abilities to by-pass of our stopple machines
Linestop plugging capabilities up to 80" of pipeline.

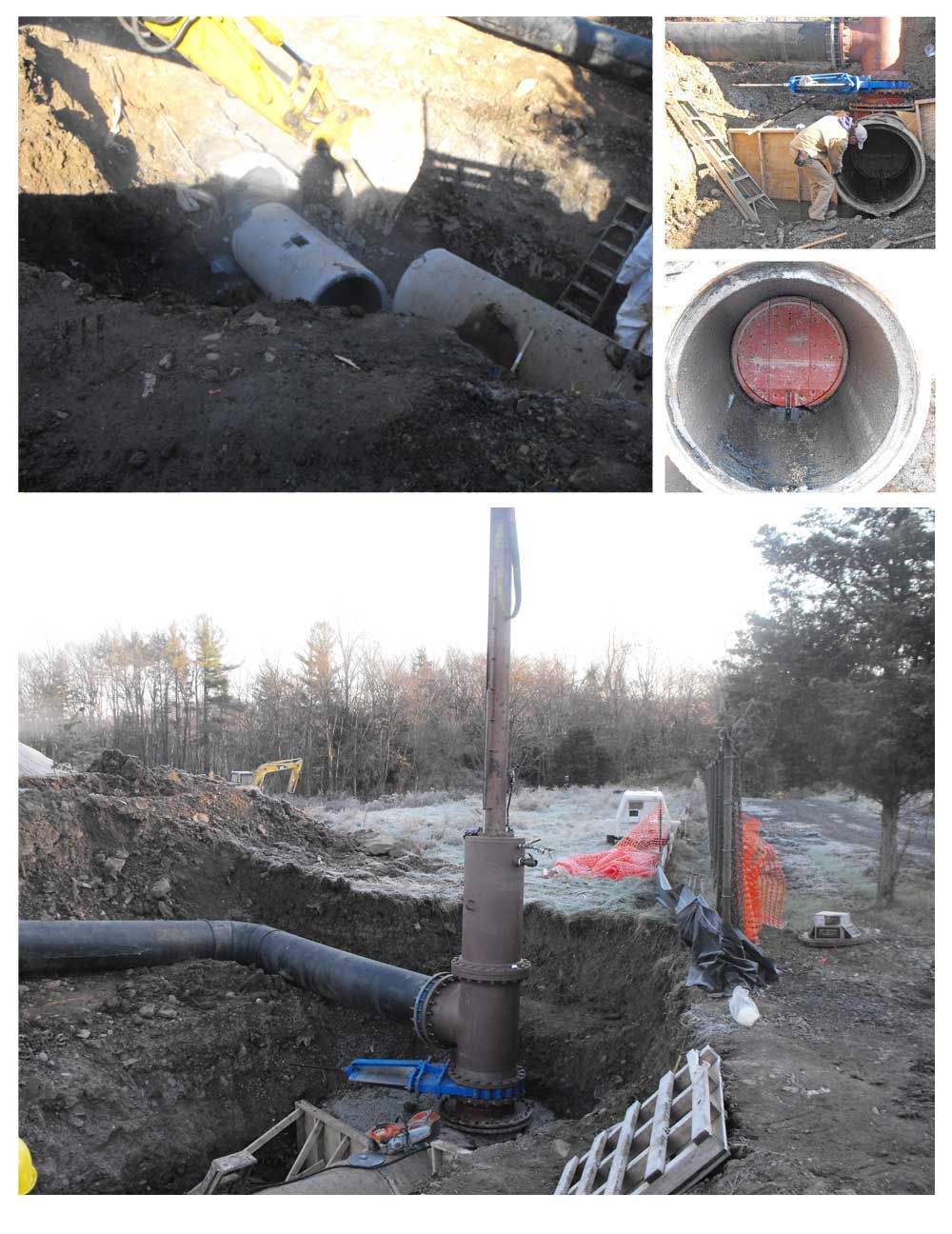

36" Line Stop for Class 210 PCCP Raw Sewage Pipeline Main (fusion epoxy lined with stainless body bolts)
This job also had 24” By-Pass Outlets off Linestop Equipment
Linestop machinery with optional by-pass capability eliminates the need for additional by-pass taps
IFT offers up to “Full-size” built-in by-passes through 48” if flow concerns are an issue.

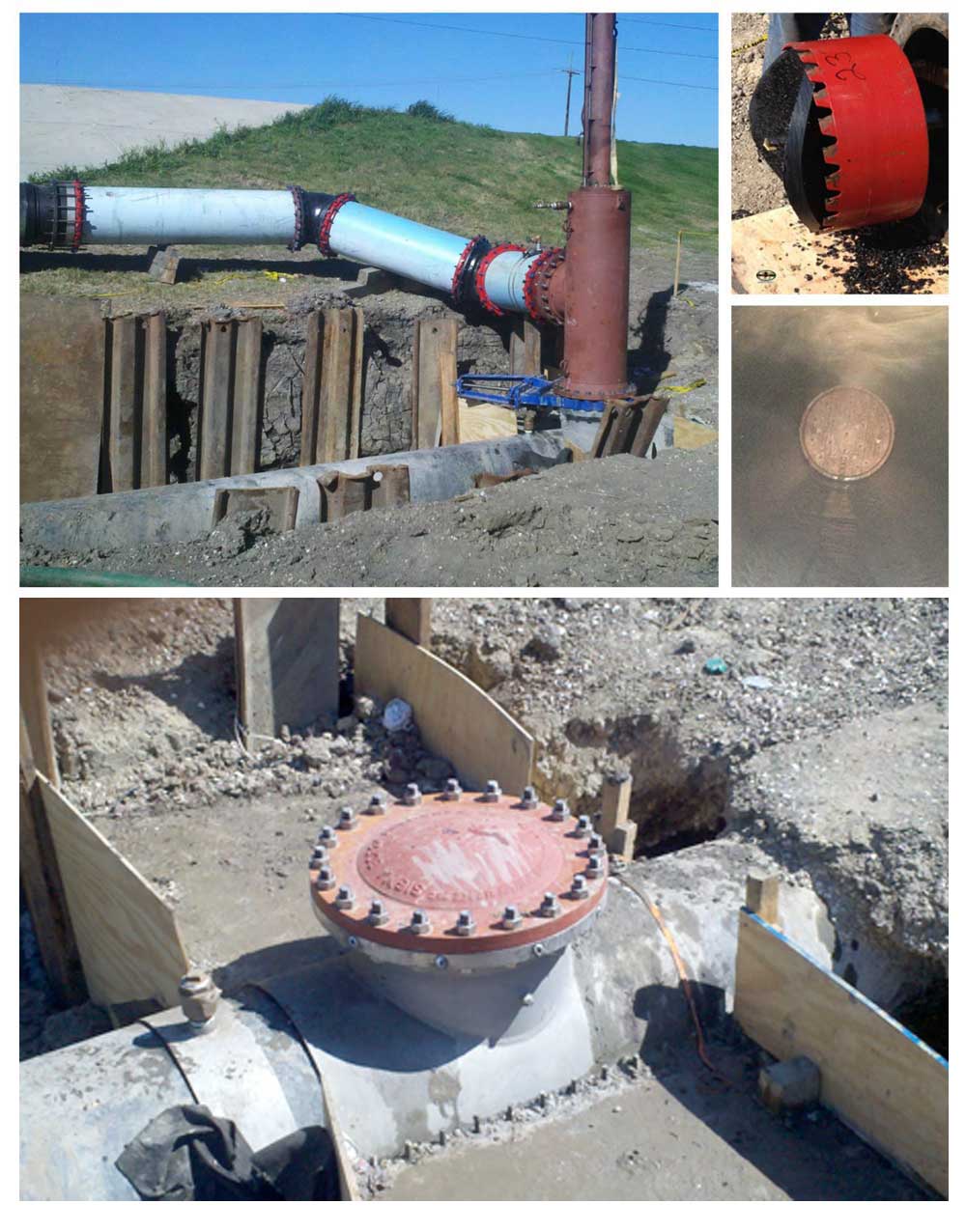

23inch Hottap for a 36inch Linestop on high density polyethylene (HDPE)
23" Hot tap Coupon retained, 36" linestop plugged with 100% shutdown, completion plug set and lastly, the blind flange is in place.
