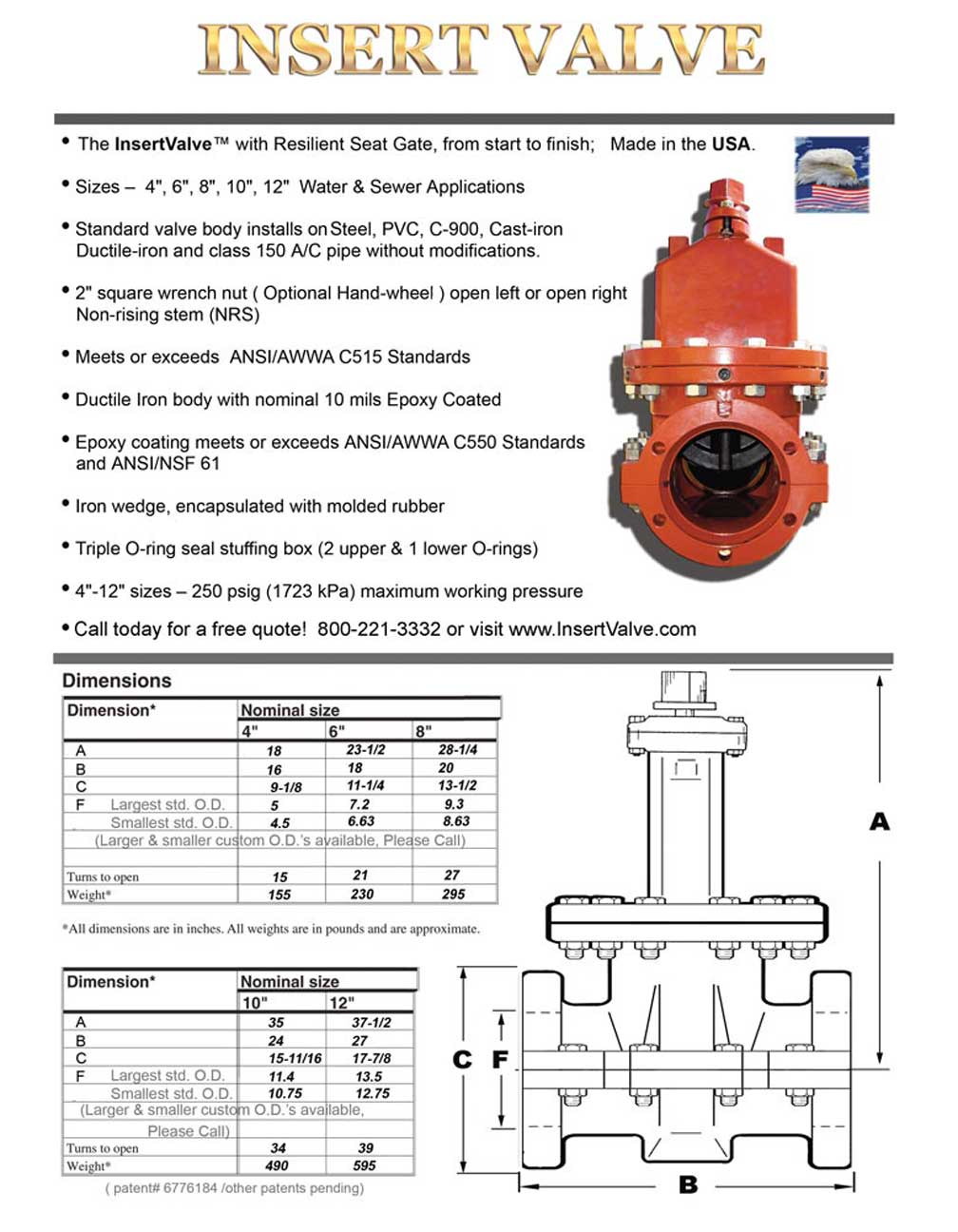

Insert Valve Specs

Pipeline Valve Installation Services:

IFT can install Insert Valves on a pipeline without shutting down the system. Valves can be installed indoors or outdoors, on chilled or domestic water, and on airlines. Our customers include hospitals, industrial companies, mechanical contractors, and municipalities. By using the TEAM InsertValve; IFT installs a real AWWA spec C515 valve on your system that is designed for continuous use. IFT is certified to train, for the certification of Team Insert Valve, and its inserting equipment packages. Click Insert Valve image on left to increase size.

Insert Valve Unique Features

  • Meets or exceeds ANSI/AWWA C515 valve specification
  • Meets or exceeds ANSI/AWWA C 550 Standards and ANSI/NSF 61
  • AWWA standard turns per inch to open
  • Gate wedge seats on valve body, not on pipe bottom
  • Gate wedge does not come in contact with sharp cut edge of pipe
  • Ductile iron body with nominal 10 mil power coat epoxy inside and out
  • 250psi (1273 kPa) maximum working pressure
  • Shell tested to 1000 psi, gate tested to 500 psi
  • Ductile Iron wedge totally encapsulated with EPDM molder rubber
  • Triple O'ring seal stuffing box (two upper & one lower)
  • 2" standard operating nut (Handwheel optional) NRS ( non-rising stem)
  • Standard valve body installs on full range of pipe sizes and types (Steel, PVC, C900, CL, DI, AC)
  • Made in the USA from start to finish
  • Valve body permanently restrains the valve to the pipe
  • The valve body can accept the Butterfly Cartridge in lieu of the gate assembly
  • Hundreds of successful installs without a single malfunction (references available)
  • The valve size is 4"-12" and other sizes available upon request

Benefits of each Insert Valve installation

  • Installs and Repairs Under Pressure
  • Reduces installation and restoration costs
  • Provides instant isolation zones for security and peace of mind
  • Reduces the costly risks associated with system shut down
  • Eliminates backflow contamination, purging, bac-t hits
  • Provides satisfied customers

Advanced Eccentric Plug Valve Installation Services

The features of the DeZURIK Eccentric Plug Valves' design include eccentric action and resilient plug facings, which assure lasting dead-tight shutoff. The clean interior design and straight-through flow, of the valve, allows high maximum flow capacity with minimum pressure drop. Heavy-duty stainless steel bearings, choice of resilient plug facings, welded-in, corrosion-resistant nickel seat and a variety of end styles are available. Eccentric Plug Valves are capable of handling clean and dirty liquids, gases, sludges, and slurries. Eccentric Plug Valves (PEC) Size Range: .5 - 72" (15 - 1800mm) Temperature Range: to 300°F (150°C) Pressure Rating: 125 - 450 psi (860 - 3100 kPa) CWP Shutoff pressure to 275 psi (1980 kPa) Shutoff Class: Resilient plug facing: drip tight to rating up to 275 psi (1890 kPa) Body Material: Cast iron, bronze, aluminum, carbon steel, stainless steel, Alloy 20, monel and ductile iron Get a quote for your indoor, outdoor, underground or above, high pressure, or hazardous Line Stopping needs. Call IFT 1-800-221-3332.

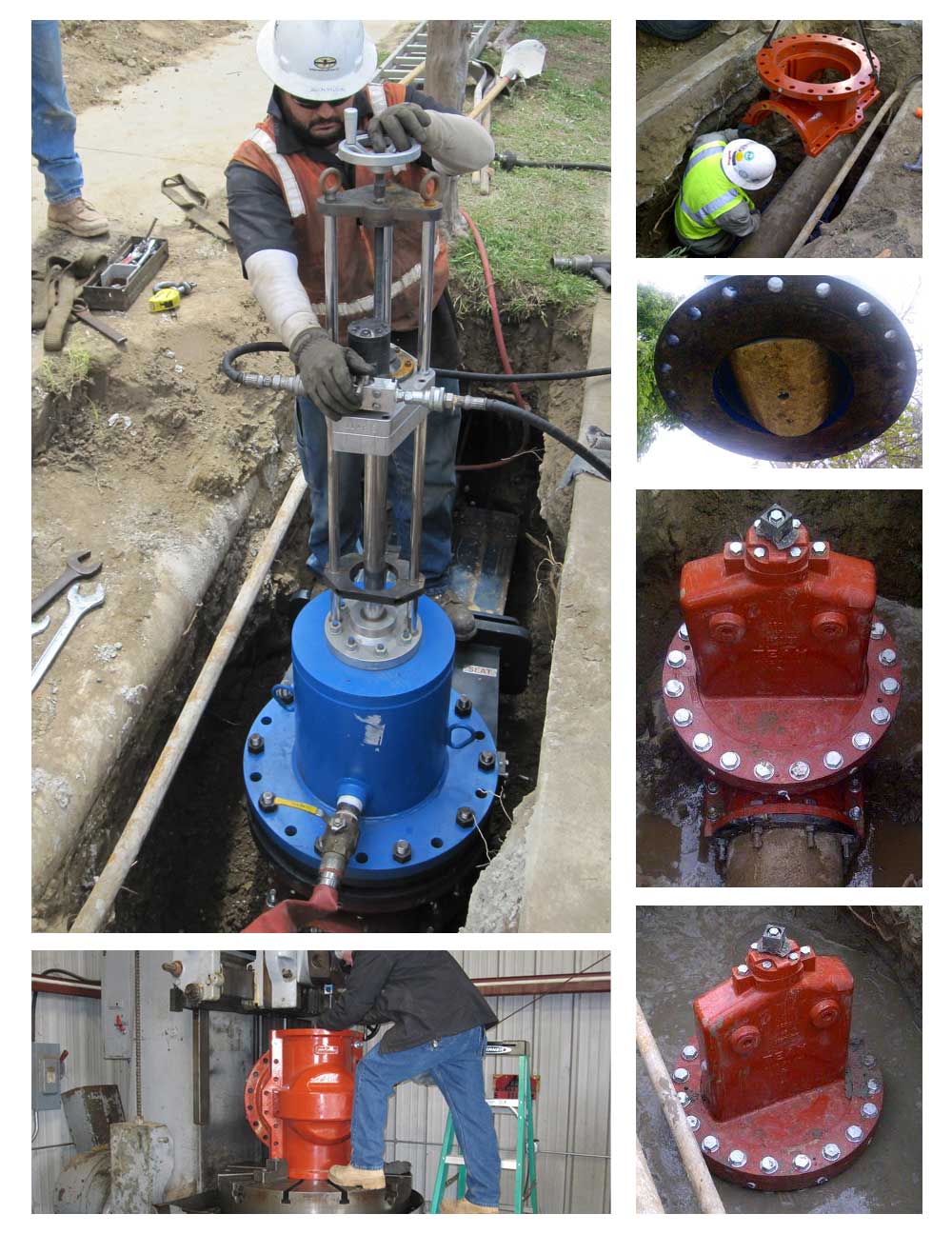

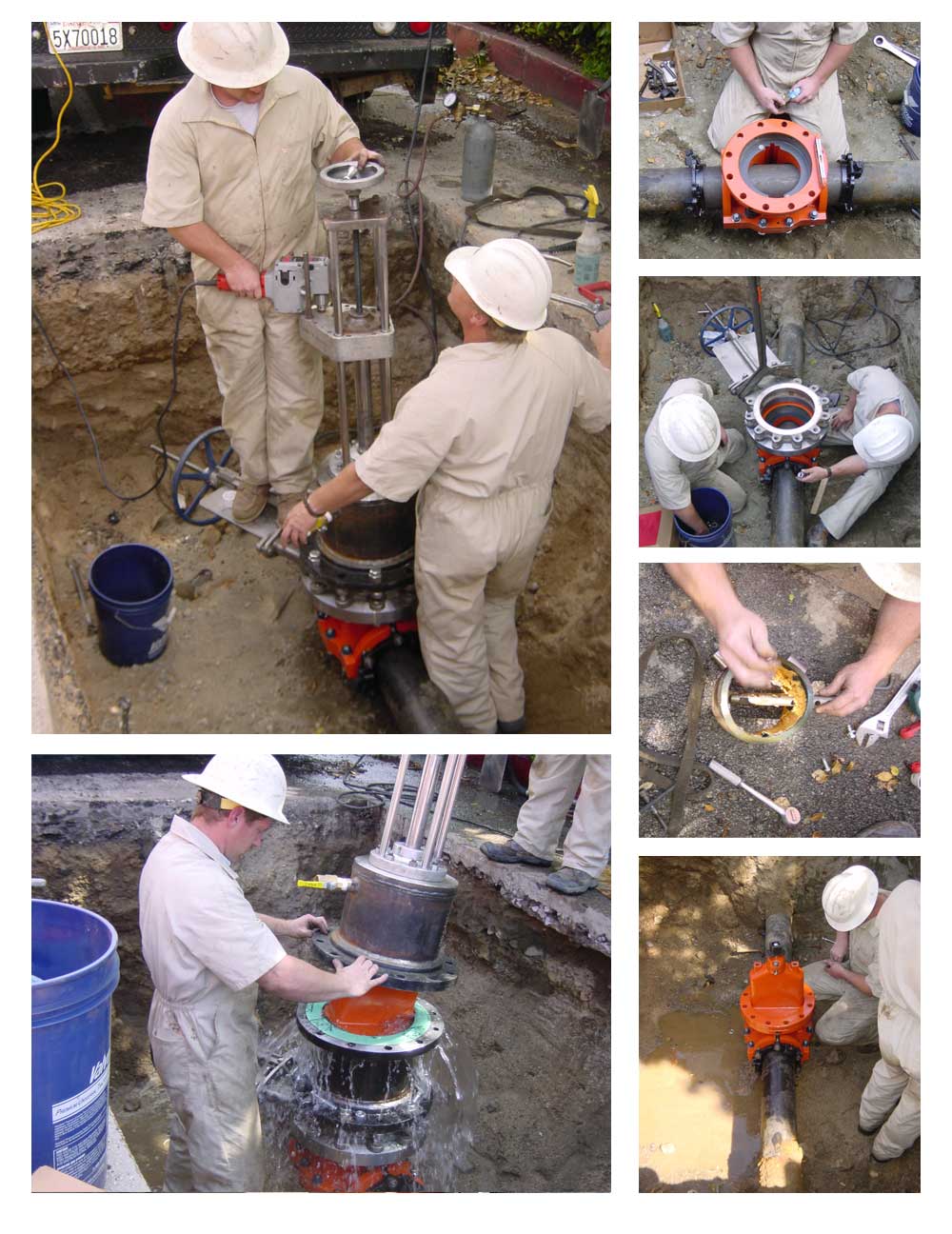

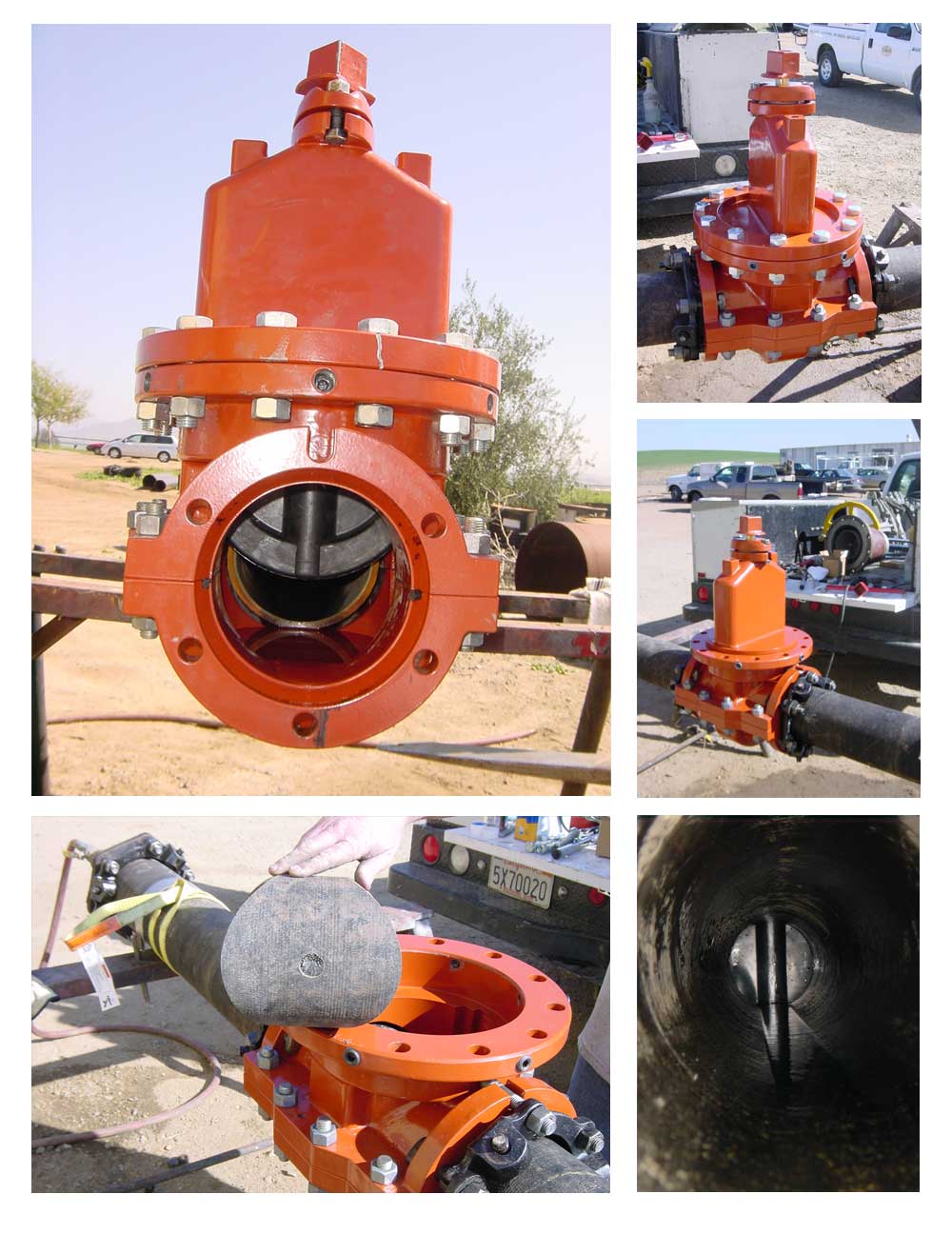

Valve Installation and Replacement Services Slideshow
